Container cooling tower

Container cooling tower series：

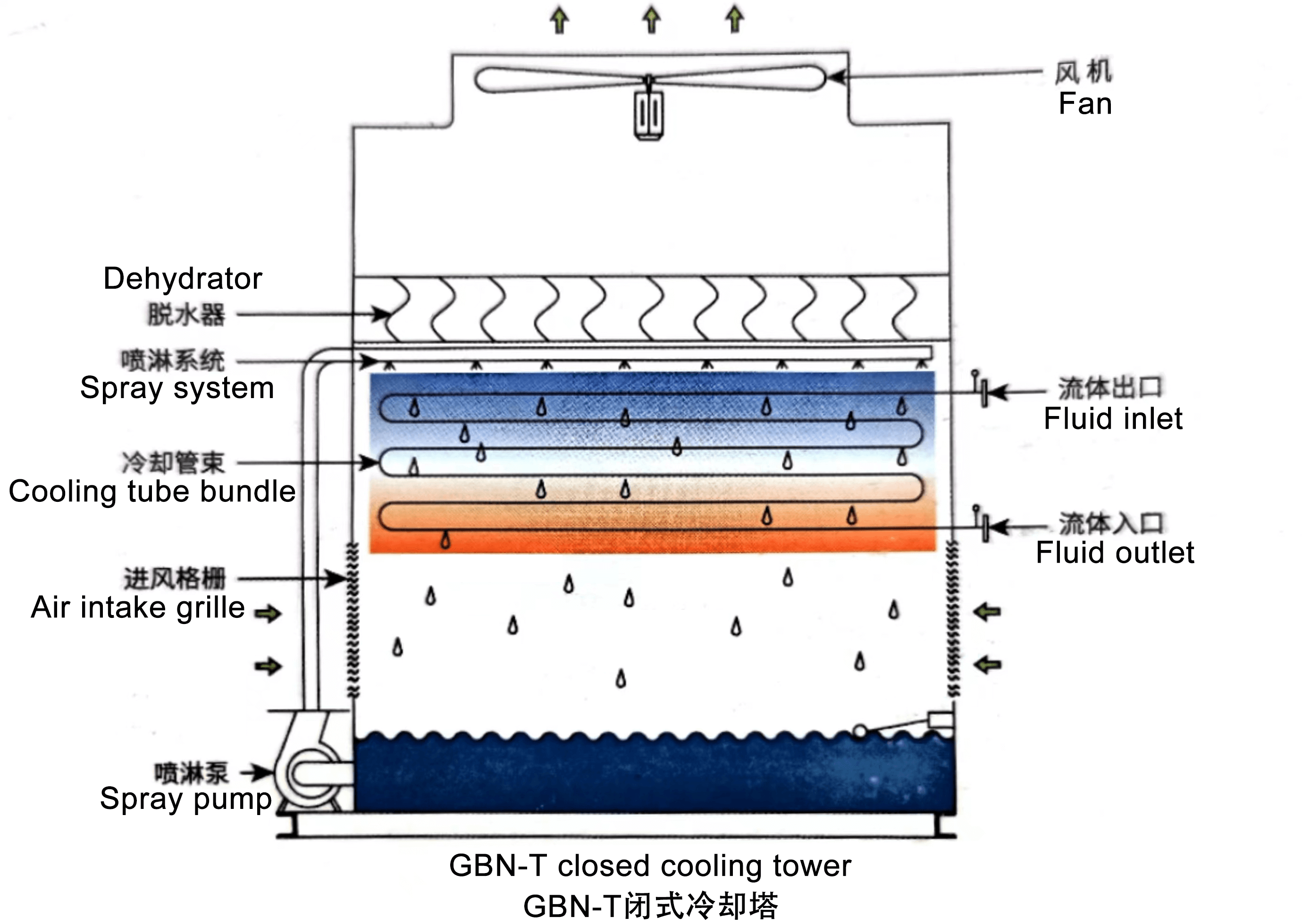

Container cooling tower is a cooling tower that reduces the temperature of the cooling medium through three circulation systems.

The first is internal circulation: the cooling medium enters the cooling tube bundle after being heated by heat exchange with the heat source, and the heat is sent to the surface of the tube bundle through the cooling tube bundle, and then the water film flowing through the tube bundle evaporates and transfers heat to the air through convection heat exchange. The cooling medium after cooling is then sent to the heat source by the water pump.

The second is the pre-cooling cycle: the spray pump pumps the spray water from the water collection tank at the bottom of the cooling tower to the specially designed spray system, and sprays the spray water evenly on the cooling tube bundle to form a stable flowing water film, absorb the heat inside the cooling tube bundle, and finally flow into the water collection tank for circulation.

The third is air circulation: the fan draws unsaturated air outside the tower into the tower, the airflow and the spray water exchange latent heat and sensible heat to absorb heat, and the specially designed dehydrator separates air and water, and discharges the saturated wet air out of the tower to complete the cycle.

Structural features:

Compact structure: The product structure is more compact, with more tube bundle heat dissipation area layout, which is more suitable for cooling projects with limited space. Overall system: Since the cooling tower occupies a small area, it can be made into an integrated machine with a circulating water pump, which is easy to move.

Scope of application:

It is particularly suitable for areas with serious air dust pollution, poor water quality, or process systems where the cooling medium must not be contaminated.

Performance advantages:

1.Stable and efficient

The soft water closed-loop circulation is adopted to effectively prevent the scale generated in the tower or the user's equipment during use from damaging the equipment.

2.Water-saving and environmental protection

The closed internal circulation and efficient dehydration device are adopted to improve the utilization rate of water. At the same time, the internal circulating water is not easy to be polluted and can be used sustainably. The spray water has a relatively small evaporation amount, which protects the environment.

3.Convenient maintenance

Reasonable maintenance space provides convenience for the maintenance of equipment. The maintenance can be entered into the tower through the maintenance door, and the maintenance of the key parts of the pipe bundle and the spray system can be more direct and convenient.
