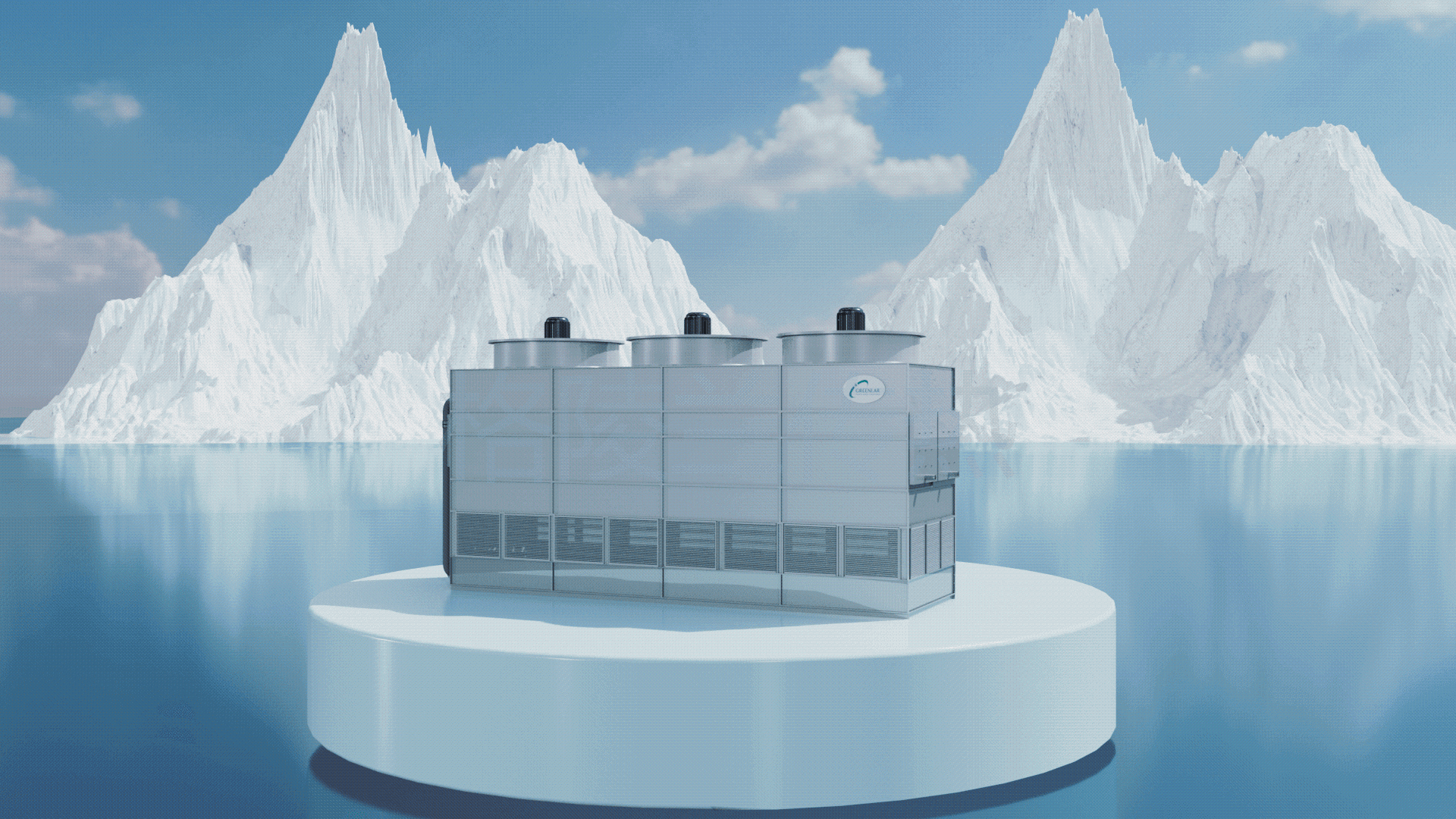

ZNXN-F Evaporative Condenser

Working principle：

The ZNXN-F evaporative condenser is an efficient heat exchange equipment developed by updating and improving the most advanced heat exchange technology at home and abroad. The ZNXN evaporative condenser uses water and air as cooling media, and exchanges heat with the high-temperature gaseous cooling inside the coil. The refrigerant condenses from the gaseous state to the liquid state. Cold water remover, etc; An external circulating water pump, an electronic water descaling device, an axial flow zone on the top of the coil side, an internal water distribution system, a condensing coil group, a packing heat exchange layer, and a machine are installed. Under the action of the axial flow fan, the condenser chamber is in a negative pressure state. During operation, the cooling water is evenly and completely covered on the surface of the coil by the water distribution system under the strong wind force. The high-temperature gaseous refrigerant enters from the top of the coil, and the condensed liquid refrigerant flows out from the bottom of the coil. In this process, the high-temperature refrigerant exchanges heat with the water and air outside the coil, and with the help of wind force, the heat transfer effect is significantly improved. After absorbing heat, the temperature of the cooling water and air increases, and some of the cooling water vaporizes to form water vapor, which carries away a large amount of heat and is sucked away by the fan and discharged into the atmosphere. The moisture in the hot air is intercepted by the water remover and collected in the water tank. The high-temperature cooling water that has not been vaporized flows into the packing heat exchange layer and is cooled by the air passing through it. After sufficient cooling, the cooling water flows back to the water tank for the circulation pump to re send to the water distribution system for continued circulation. The water lost to the atmosphere is promptly replenished by the water float ball valve in the collection tank.

Product Features:

1.Easy transportation and installation

ZNXN products are transported using standard components in upper and lower boxes, and installed onsite, greatly facilitating the transportation and installation of the products.

2.Low operating costs, energy-saving and environmentally friendly

Due to its unique structural form and high thermal performance, this product has the advantages of low condensation temperature, energy-saving and water-saving operation, low noise, no environmental pollution, and low maintenance costs. It is a truly energy-saving and environmentally friendly product.

3.Low failure rate

Both the fan and water pump are equipped with high-quality bearings, and there are no other running wear parts. The fan adopts a direct connection structure, without the transmission loss caused by the pulley structure. Low noise and low failure rate.

4.Excellent heat exchange performance

The ZNXN product utilizes a combination of wind water reverse heat exchange coils and PVC fillers to achieve efficient heat transfer.

5.Small footprint and low comprehensive investment

The ZNXN product integrates traditional condensers, cooling towers, circulating water pumps, water tanks, and connecting water pipes, and can operate normally without the need for additional equipment. It has the advantages of small footprint and low comprehensive investment.
